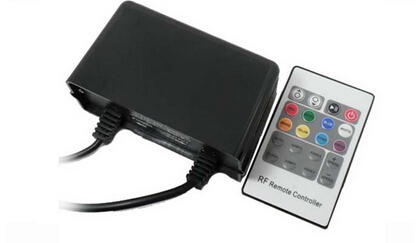

RF waterproof controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient connection, simplicity to use and others. According to actual need of customers, it can carry out jumpy changing, gradual changing,stroboflash and other effects of change.

Technical Parameters:

Working temperature: -20-60 ℃
Supply voltage: DC5V, 12V, 18V, 24V (for orders specify voltage)
Output: 3 channels
Connect mode: common anode
Transmission/receiving frequency：433MHz
Remote distance: 10～15M
Controller dimension: L108 Χ W76Χ H43 mm
Remote dimension: L85ΧW52ΧH7 MM
Packing size: L145 Χ W95 Χ H50mm
Net weight: 140g
Gross weight: 175g
Static power consumption: <1 W
Output current: <3A (each channel)
Output power: 5 V: <45W, 12V: <108W, 24V: <216W
