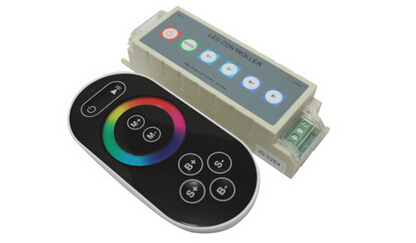

Rainbow Touch RGB Controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.

Technical Parameters

Remote :
● Power supply: AAA battery * 3pcs
● Cover Material:ABS
● Fabrication processing: multicolour printing & UV varnish
● Dimmension of Remote:L113.5 Χ W55 Χ H18 mm

Controller:
● Working temperature: -20-60 ℃
● Supply voltage: 12V, 24V (for orders specify voltage)
● Output: 3 channels
● Connectiing mode: common anode
● Transmission/Receiving frequency: 433.92Mhz
● External dimension of controller: L89ΧW70ΧH28mm
● Packing size:L120 Χ W70 Χ H50 mm
● Static power consumption: <
Power input interface ( the first way ):
● Output current: <6A (each channel)
● Output power: 12V: <216W, 24V: <432W
