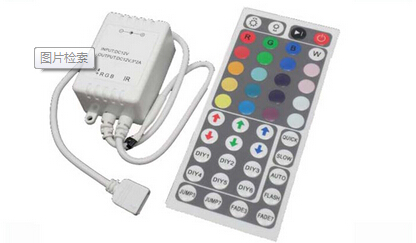

44 keys IR RGB LED Controller

*Summarization
44-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. Besides, you also could adjust random color by yourself freely.

*Technical Parameters
● Working temperature：-20-60 ℃
● Supply voltage: DC5V, 12V, 18V, 24V optional (specify the required voltage on orders)
● 0utput: 3 channels
● Connecting mode：common anode
● External dimension：L63ΧW35ΧH22 mm
● Controller dimension：L125ΧW56ΧH7mm
● Packing size：L130ΧW60ΧH35 mm
● Net weight: 60g
● Gross weight: 90 g
● Static power consumption: <1 W
● Output current: <2 A (each channel)
● Output power: 5V:<30W, 12V:<72W, 24V:<144W
